Class for NiftyPET's GPU forward projector. More...

#include "stir/recon_buildblock/NiftyPET_projector/ForwardProjectorByBinNiftyPET.h"

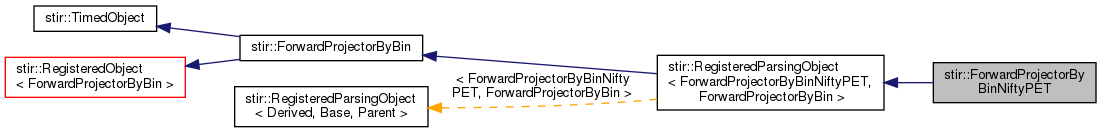

Inheritance diagram for stir::ForwardProjectorByBinNiftyPET:

[legend]

Public Member Functions
	ForwardProjectorByBinNiftyPET ()
	Default constructor calls reset_timers().
virtual	~ForwardProjectorByBinNiftyPET ()
	Constructor.
virtual void	initialise_keymap ()
	Keymap.
virtual void	set_up (const shared_ptr< const ProjDataInfo > &proj_data_info_ptr, const shared_ptr< const DiscretisedDensity< 3, float > > &density_info_sptr)
	Stores all necessary geometric info.
virtual const DataSymmetriesForViewSegmentNumbers *	get_symmetries_used () const
	Symmetries not used, so returns TrivialDataSymmetriesForBins.
virtual void	set_input (const DiscretisedDensity< 3, float > &)
	Set input.
void	set_verbosity (const bool verbosity)
	Set verbosity.
void	set_use_truncation (const bool use_truncation)
	Set use truncation - truncate before forward projection and after back projection.
Public Member Functions inherited from stir::RegisteredParsingObject< ForwardProjectorByBinNiftyPET, ForwardProjectorByBin >
std::string	get_registered_name () const override
	Returns Derived::registered_name.
std::string	parameter_info () override
	Returns a string with all parameters and their values, in a form suitable for parsing again.
Public Member Functions inherited from stir::ForwardProjectorByBin
	ForwardProjectorByBin ()
	Default constructor calls reset_timers().
void	forward_project (ProjData &, const DiscretisedDensity< 3, float > &, int subset_num=0, int num_subsets=1, bool zero=true)
	project the volume into the whole or a subset of proj_data, optionally zeroing the rest
virtual void	forward_project (ProjData &, int subset_num=0, int num_subsets=1, bool zero=true)
	project the volume into the whole proj_data
void	forward_project (RelatedViewgrams< float > &)
	project the volume into the viewgrams
void	forward_project (RelatedViewgrams< float > &, const int min_axial_pos_num, const int max_axial_pos_num)
void	forward_project (RelatedViewgrams< float > &, const int min_axial_pos_num, const int max_axial_pos_num, const int min_tangential_pos_num, const int max_tangential_pos_num)
void	set_pre_data_processor (shared_ptr< DataProcessor< DiscretisedDensity< 3, float > > > pre_data_processor_sptr)
	Set data processor to use before forward projection. MUST BE CALLED BEFORE SET_INPUT.
Public Member Functions inherited from stir::TimedObject
void	reset_timers ()
	reset all timers kept by this object
void	stop_timers () const
	stop all timers kept by this object
void	start_timers (bool do_reset=false) const
	start all timers kept by this object
double	get_CPU_timer_value () const
	get current value of the CPU timer (since first use or last reset)
double	get_wall_clock_timer_value () const
	get current value of the wall-clock timer (since first use or last reset)
Public Member Functions inherited from stir::ParsingObject
	ParsingObject (const ParsingObject &)
ParsingObject &	operator= (const ParsingObject &)
bool	parse (std::istream &f)
bool	parse (const char *const filename)
void	ask_parameters ()

Static Public Attributes
static const char *const	registered_name = "NiftyPET"
	Name which will be used when parsing a ForwardProjectorByBin object.

Protected Member Functions
virtual void	actual_forward_project (RelatedViewgrams< float > &, const DiscretisedDensity< 3, float > &, const int min_axial_pos_num, const int max_axial_pos_num, const int min_tangential_pos_num, const int max_tangential_pos_num)
	This virtual function has to be implemented by the derived class.
virtual void	actual_forward_project (RelatedViewgrams< float > &viewgrams, const int min_axial_pos_num, const int max_axial_pos_num, const int min_tangential_pos_num, const int max_tangential_pos_num)
Protected Member Functions inherited from stir::ForwardProjectorByBin
virtual void	check (const ProjDataInfo &proj_data_info) const
	check if the argument is the same as what was used for set_up()
virtual void	check (const ProjDataInfo &proj_data_info, const DiscretisedDensity< 3, float > &density_info) const
	check if the arguments are the same as what was used for set_up()
void	set_defaults () override
	Set defaults before parsing.
virtual bool	post_processing ()
	This will be called at the end of the parsing.
virtual void	set_key_values ()
	This will be called before parsing or parameter_info is called.

Additional Inherited Members
Static Public Member Functions inherited from stir::RegisteredParsingObject< ForwardProjectorByBinNiftyPET, ForwardProjectorByBin >
static ForwardProjectorByBin *	read_from_stream (std::istream *)
	Construct a new object (of type Derived) by parsing the istream.
Static Public Member Functions inherited from stir::RegisteredObject< ForwardProjectorByBin >
static ForwardProjectorByBin *	read_registered_object (std::istream *in, const std::string &registered_name)
	Construct a new object (of a type derived from Root, its actual type determined by the registered_name parameter) by parsing the istream.
static ForwardProjectorByBin *	ask_type_and_parameters ()
	ask the user for the type, and then calls read_registered_object(0, type)
static void	list_registered_names (std::ostream &stream)
	List all possible registered names to the stream.
Protected Types inherited from stir::RegisteredObject< ForwardProjectorByBin >
typedef ForwardProjectorByBin ()	RootFactory(std::istream *)
	The type of a root factory is a function, taking an istream* as argument, and returning a Root*.
typedef FactoryRegistry< std::string, RootFactory, interfile_less >	RegistryType
	The type of the registry.
Static Protected Member Functions inherited from stir::RegisteredObject< ForwardProjectorByBin >
static RegistryType &	registry ()
	Static function returning the registry.
Protected Attributes inherited from stir::ForwardProjectorByBin
bool	_already_set_up
shared_ptr< DiscretisedDensity< 3, float > >	_density_sptr
	The density ptr set with set_up().
shared_ptr< DataProcessor< DiscretisedDensity< 3, float > > >	_pre_data_processor_sptr
shared_ptr< const ProjDataInfo >	_proj_data_info_sptr
	ProjDataInfo set by set_up().
KeyParser	parser

Detailed Description

Class for NiftyPET's GPU forward projector.

Only applicable for mMR data. Current limitations:

Projects all of the data in one go
Only debugged for span 11.

Constructor & Destructor Documentation

◆ ForwardProjectorByBinNiftyPET()

stir::ForwardProjectorByBinNiftyPET::ForwardProjectorByBinNiftyPET ( )

Default constructor calls reset_timers().

References ForwardProjectorByBinNiftyPET().

Referenced by ForwardProjectorByBinNiftyPET().

Member Function Documentation

◆ initialise_keymap()

void stir::ForwardProjectorByBinNiftyPET::initialise_keymap ( )

virtual

Keymap.

Reimplemented from stir::ForwardProjectorByBin.

◆ set_up()

void stir::ForwardProjectorByBinNiftyPET::set_up	(	const shared_ptr< const ProjDataInfo > &	proj_data_info_ptr,
		const shared_ptr< const DiscretisedDensity< 3, float > > &	density_info_sptr )

virtual

Stores all necessary geometric info.

If necessary, set_up() can be called more than once.

Derived classes can assume that forward_project() will be called with input corresponding to the arguments of the last call to set_up().

Warning: there is currently no check on this.; Derived classes have to call set_up from the base class.

Implements stir::ForwardProjectorByBin.

References stir::ForwardProjectorByBin::_density_sptr, stir::ForwardProjectorByBin::check(), stir::error(), stir::ProjDataInMemory::ProjDataInMemory(), and stir::ForwardProjectorByBin::set_up().

◆ get_symmetries_used()

const DataSymmetriesForViewSegmentNumbers * stir::ForwardProjectorByBinNiftyPET::get_symmetries_used ( ) const

virtual

Symmetries not used, so returns TrivialDataSymmetriesForBins.

Implements stir::ForwardProjectorByBin.

References stir::error().

◆ set_input()

void stir::ForwardProjectorByBinNiftyPET::set_input ( const DiscretisedDensity< 3, float > & density )

virtual

Set input.

Reimplemented from stir::ForwardProjectorByBin.

References stir::ForwardProjectorByBin::_density_sptr, stir::ForwardProjectorByBin::set_input(), and stir::truncate_rim().

◆ actual_forward_project() [1/2]

void stir::ForwardProjectorByBinNiftyPET::actual_forward_project	(	RelatedViewgrams< float > &	,
		const DiscretisedDensity< 3, float > &	,
		const int	min_axial_pos_num,
		const int	max_axial_pos_num,
		const int	min_tangential_pos_num,
		const int	max_tangential_pos_num )

protectedvirtual

This virtual function has to be implemented by the derived class.

Reimplemented from stir::ForwardProjectorByBin.

◆ actual_forward_project() [2/2]

void stir::ForwardProjectorByBinNiftyPET::actual_forward_project	(	RelatedViewgrams< float > &	viewgrams,
		const int	min_axial_pos_num,
		const int	max_axial_pos_num,
		const int	min_tangential_pos_num,
		const int	max_tangential_pos_num )

protectedvirtual

Reimplemented from stir::ForwardProjectorByBin.

The documentation for this class was generated from the following files:

/home/kris/devel/STIRdistrib/STIR/src/include/stir/recon_buildblock/NiftyPET_projector/ForwardProjectorByBinNiftyPET.h
/home/kris/devel/STIRdistrib/STIR/src/recon_buildblock/NiftyPET_projector/ForwardProjectorByBinNiftyPET.cxx
