Multithreaded CPU Implementation of the Quadratic Gibbs prior. More...

#include "stir/recon_buildblock/GibbsQuadraticPenalty.h"

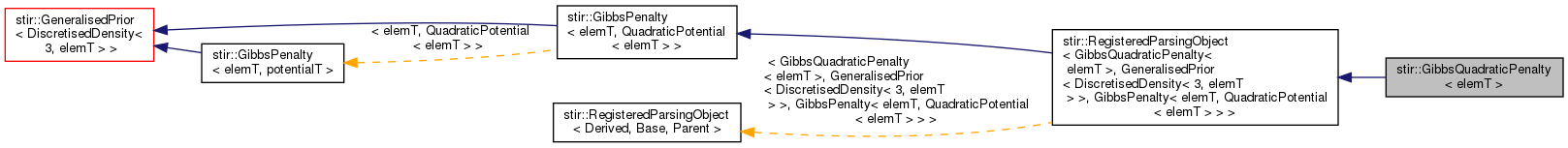

Inheritance diagram for stir::GibbsQuadraticPenalty< elemT >:

[legend]

Public Member Functions
	GibbsQuadraticPenalty (const bool only_2D, float penalisation_factor)

Public Member Functions inherited from stir::RegisteredParsingObject< GibbsQuadraticPenalty< elemT >, GeneralisedPrior< DiscretisedDensity< 3, elemT > >, GibbsPenalty< elemT, QuadraticPotential< elemT > > >
std::string	get_registered_name () const override
	Returns Derived::registered_name.

std::string	parameter_info () override
	Returns a string with all parameters and their values, in a form suitable for parsing again.

Public Member Functions inherited from stir::GibbsPenalty< elemT, QuadraticPotential< elemT > >
	GibbsPenalty ()
	Default constructor.

	GibbsPenalty (const bool only_2D, float penalization_factor)
	Explicit Constructor with 2D/3D option and penalization factor.

double	compute_value (const DiscretisedDensity< 3, elemT > &current_image_estimate) override
	Compute the value of the prior for the current image estimate.

void	compute_gradient (DiscretisedDensity< 3, elemT > &prior_gradient, const DiscretisedDensity< 3, elemT > &current_image_estimate) override
	Compute the gradient of the prior for the current image estimate.

double	compute_gradient_times_input (const DiscretisedDensity< 3, elemT > &input, const DiscretisedDensity< 3, elemT > &current_image_estimate) override
	Compute the dot product of the prior gradient and an input image.

void	compute_Hessian (DiscretisedDensity< 3, elemT > &prior_Hessian_for_single_densel, const BasicCoordinate< 3, int > &coords, const DiscretisedDensity< 3, elemT > &current_image_estimate) const override
	Compute the Hessian row of the prior at (coords).

void	compute_Hessian_diagonal (DiscretisedDensity< 3, elemT > &Hessian_diagonal, const DiscretisedDensity< 3, elemT > &current_estimate) const override
	Compute the diagonal of the Hessian matrix.

void	accumulate_Hessian_times_input (DiscretisedDensity< 3, elemT > &output, const DiscretisedDensity< 3, elemT > &current_estimate, const DiscretisedDensity< 3, elemT > &input) const override
	Accumulate Hessian times input image into output.

const Array< 3, float > &	get_weights () const
	Get the current weights array. More...

virtual void	set_weights (const Array< 3, float > &)
	Set the weights array for the prior. More...

shared_ptr< const DiscretisedDensity< 3, elemT > >	get_kappa_sptr () const
	get current kappa image More...

virtual void	set_kappa_sptr (const shared_ptr< const DiscretisedDensity< 3, elemT >> &)
	Set the kappa image (spatially-varying penalty factors). More...

Succeeded	set_up (shared_ptr< const DiscretisedDensity< 3, elemT >> const &target_sptr) override
	Set up the prior for a target image. Must be called before use.

virtual std::string	get_parsing_name () const
	Getter method to retrieve the parsing name. More...

bool	is_convex () const override
	Return whether the prior is convex or not.

Public Member Functions inherited from stir::GeneralisedPrior< DiscretisedDensity< 3, elemT > >
virtual double	compute_gradient_times_input (const DiscretisedDensity< 3, elemT > &input, const DiscretisedDensity< 3, elemT > &current_estimate)
	compute the dot product of the gradient of the log of the prior function at the current_estimate with input More...

virtual void	compute_Hessian (DiscretisedDensity< 3, elemT > &prior_Hessian_for_single_densel, const BasicCoordinate< 3, int > &coords, const DiscretisedDensity< 3, elemT > &current_image_estimate) const
	This computes a single row of the Hessian. More...

virtual void	compute_Hessian_diagonal (DiscretisedDensity< 3, elemT > &Hessian_diagonal, const DiscretisedDensity< 3, elemT > &current_estimate) const
	This computes the diagonal of the Hessian of the log of the prior function at the current_estimate and stores it in Hessian_diagonal. More...

virtual void	add_multiplication_with_approximate_Hessian (DiscretisedDensity< 3, elemT > &output, const DiscretisedDensity< 3, elemT > &input) const
	This should compute the multiplication of the Hessian with a vector and add it to output. More...

virtual void	accumulate_Hessian_times_input (DiscretisedDensity< 3, elemT > &output, const DiscretisedDensity< 3, elemT > &current_estimate, const DiscretisedDensity< 3, elemT > &input) const
	This should compute the multiplication of the Hessian with a vector and add it to output. More...

float	get_penalisation_factor () const

void	set_penalisation_factor (float new_penalisation_factor)

virtual Succeeded	set_up (shared_ptr< const DiscretisedDensity< 3, elemT > > const &target_sptr)
	Has to be called before using this object.

Public Member Functions inherited from stir::ParsingObject
	ParsingObject (const ParsingObject &)

ParsingObject &	operator= (const ParsingObject &)

void	ask_parameters ()

bool	parse (std::istream &f)

bool	parse (const char *const filename)

Static Public Attributes
static constexpr const char *const	registered_name = "Gibbs Quadratic"
	Name which will be used when parsing a GeneralisedPrior object.

Additional Inherited Members
Static Public Member Functions inherited from stir::RegisteredParsingObject< GibbsQuadraticPenalty< elemT >, GeneralisedPrior< DiscretisedDensity< 3, elemT > >, GibbsPenalty< elemT, QuadraticPotential< elemT > > >
static GeneralisedPrior< DiscretisedDensity< 3, elemT > > *	read_from_stream (std::istream *)
	Construct a new object (of type Derived) by parsing the istream. More...

Static Public Member Functions inherited from stir::RegisteredObject< GeneralisedPrior< DiscretisedDensity< 3, elemT > > >
static GeneralisedPrior< DiscretisedDensity< 3, elemT > > *	read_registered_object (std::istream *in, const std::string &registered_name)
	Construct a new object (of a type derived from Root, its actual type determined by the registered_name parameter) by parsing the istream. More...

static GeneralisedPrior< DiscretisedDensity< 3, elemT > > *	ask_type_and_parameters ()
	ask the user for the type, and then calls read_registered_object(0, type) More...

static void	list_registered_names (std::ostream &stream)
	List all possible registered names to the stream. More...

Protected Types inherited from stir::RegisteredObject< GeneralisedPrior< DiscretisedDensity< 3, elemT > > >
typedef GeneralisedPrior< DiscretisedDensity< 3, elemT > > (	RootFactory) (std::istream *)
	The type of a root factory is a function, taking an istream* as argument, and returning a Root*.

typedef FactoryRegistry< std::string, RootFactory, interfile_less >	RegistryType
	The type of the registry.

Protected Member Functions inherited from stir::GibbsPenalty< elemT, QuadraticPotential< elemT > >
void	compute_default_weights (const CartesianCoordinate3D< float > &grid_spacing, bool only_2D)
	Compute default weights for the prior.

void	check (DiscretisedDensity< 3, elemT > const &current_image_estimate) const override
	Check that the prior is ready to be used.

void	set_defaults () override
	Set defaults before parsing.

void	initialise_keymap () override
	Initialise all keywords.

bool	post_processing () override
	This will be called at the end of the parsing. More...

Protected Member Functions inherited from stir::GeneralisedPrior< DiscretisedDensity< 3, elemT > >
virtual void	check (DiscretisedDensity< 3, elemT > const &current_estimate) const
	Check that the prior is ready to be used.

Protected Member Functions inherited from stir::ParsingObject
virtual void	set_key_values ()
	This will be called before parsing or parameter_info is called. More...

Static Protected Member Functions inherited from stir::RegisteredObject< GeneralisedPrior< DiscretisedDensity< 3, elemT > > >
static RegistryType &	registry ()
	Static function returning the registry. More...

Protected Attributes inherited from stir::GibbsPenalty< elemT, QuadraticPotential< elemT > >
Array< 3, float >	weights
	The weights for the neighbourhood.

bool	only_2D
	can be set during parsing to restrict the weights to the 2D case

std::string	gradient_filename_prefix
	filename prefix for outputing the gradient whenever compute_gradient() is called. More...

std::string	kappa_filename
	Filename for the $\kappa$ image that will be read by post_processing()

QuadraticPotential< elemT >	potential
	Gibbs Potential Function.

shared_ptr< const DiscretisedDensity< 3, elemT > >	kappa_ptr
	The kappa image (spatially-varying penalty factors).

CartesianCoordinate3D< int >	image_dim
	Image dimensions.

CartesianCoordinate3D< int >	image_max_indices
	Maximum image indices.

CartesianCoordinate3D< int >	image_min_indices
	Minimum image indices.

Protected Attributes inherited from stir::GeneralisedPrior< DiscretisedDensity< 3, elemT > >
float	penalisation_factor

bool	_already_set_up

Protected Attributes inherited from stir::ParsingObject
KeyParser	parser

Detailed Description

template<typename elemT>
class stir::GibbsQuadraticPenalty< elemT >

Multithreaded CPU Implementation of the Quadratic Gibbs prior.

Parsing

These are the keywords that can be used in addition to the ones in GibbsPrior.

Gibbs Quadratic Penalty Parameters:=
; keywords from GibbsPrior
END Gibbs Quadratic Penalty Parameters:=

The documentation for this class was generated from the following file:

/home/sirfuser/devel/STIRdistrib/STIR/src/include/stir/recon_buildblock/GibbsQuadraticPenalty.h
